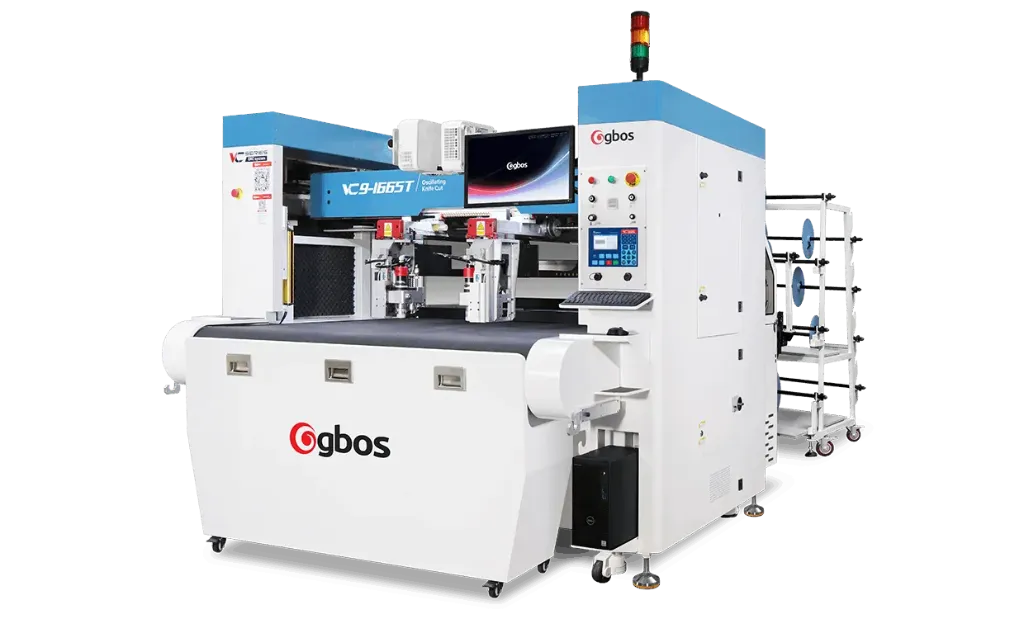

The Multi-function AI Camera Positioning Oscillationg Knife Cutting Machine from the Smart Industrial Bee Series is a high-efficiency oscillating knife cutting system designed for larger-format materials and continuous production environments. Built for precision and scalability, this model supports both sample development and batch manufacturing with enhanced speed and stability.

Equipped with advanced motion control, intelligent nesting capabilities, and optional automation features, the VC9-1670TN ensures accurate cutting across a wide range of materials. Its robust structure and extended working area make it ideal for industries requiring consistent performance, high material utilization, and flexible production workflows.

Large-format processing area for wider material handling
High-speed oscillating knife cutting system
Advanced gear-driven motion system for precision and stability
Strong casting frame structure for vibration control
Supports multi-layer material cutting
Intelligent nesting system for optimized material usage
Optional AI vision system for pattern recognition and positioning
Conveyor working table for continuous feeding (TN model)
Vacuum adsorption system for stable material fixation
Multi-function capability: cutting, marking, punching (configurable)
Compatible with multiple industry file formats
Designed for both sampling and batch production

Benefit	How It Helps the Manufacturer
Higher Production Efficiency	Conveyor system enables continuous cutting and reduces downtime
Improved Material Utilization	Intelligent nesting optimizes layout and minimizes wastage
Consistent Cutting Accuracy	Stable structure and precision drive system ensure reliable output
Scalable Production	Suitable for both small batch and larger production volumes
Reduced Manual Intervention	Automation features reduce manual alignment and cutting effort
Handles Larger Materials	Extended cutting area supports bigger sheets and rolls
Multi-Functional Operations	Combines cutting, marking, and punching in one system
Faster Workflow	Speeds up sampling, prototyping, and production cycles
Operator Convenience	Ergonomic design and automated feeding improve usability
Industry Versatility	Supports multiple materials across various manufacturing sectors

Model	Processing Area	Max Cutting Speed	Acceleration*	Gross Power	Weight	Machine Size	Compatible Format
VC9-AI-1612	1600 × 1200 mm	1000 mm/s	20 m/s	9000 W	1200 kg	3000 × 2500 × 2000 mm	Windows 10/11, AI, PLT, DXF
VC9-AI-1612-SCCD	1600 × 1200 mm	800 mm/s	20 m/s	7800 W	1450 kg	3280 × 2745 × 2290 mm	Windows 10/11, PLT, DXF
VC9-AI-1612-DP	1600 × 1200 mm	800 mm/s	20 m/s	8000 W	1450 kg	3280 × 2745 × 2290 mm	Windows 10/11, PLT, DXF
VC9-AI-1612-ITS	1600 × 1200 mm	800 mm/s	20 m/s	7800 W	1450 kg	3280 × 2745 × 2290 mm	Windows 10/11, PLT, DXF

The Multi-function AI Camera Positioning Oscillationg Knife Cutting Machine can be used across multiple manufacturing segments, including:

Footwear
Leather goods
Garments
Underwear
Lining materials
Handbags and luggage
Composite materials
Packaging

The Multi-function AI Camera Positioning Oscillationg Knife Cutting Machine supports applications across garment manufacturing, lining materials, footwear, underwear, leather, composite materials and packaging.
